Preheater inner cylinder

---

Global Sales     OEM tailor design

Product name: Preheater inner cylinder/Ceramic inner cylinder/Heat-resistant steel inner cylinder

Production process: Casting, Forging

Material types:Al₂O₃ Ceramics,SiC ceramics,Ceramic-Metal Composite,Carbon Steel,heat-resistant steel,High chromium cast iron,alloy steel,etc.

Applicable industries: Cement, metallurgy, chemical industry, steel, petroleum, electricity, new energy, etc.

Our service:

1. Before sales, we will fully understand the customer's working conditions and recommend the most appropriate material selection to the customer.

2. Provide customers with drawings based on their machine models, spare parts dimensions, etc.

3. After sales, we will continue to pay attention to the usage of the product and provide timely help.

If you need detailed technical information of the product or cannot find the product you need on the website, please email us（info@lyzhili.com）, because we are a customized factory for preheater spare parts.

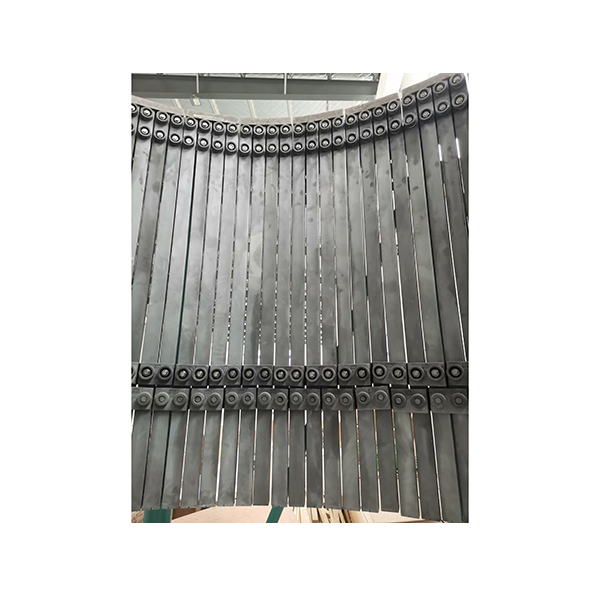

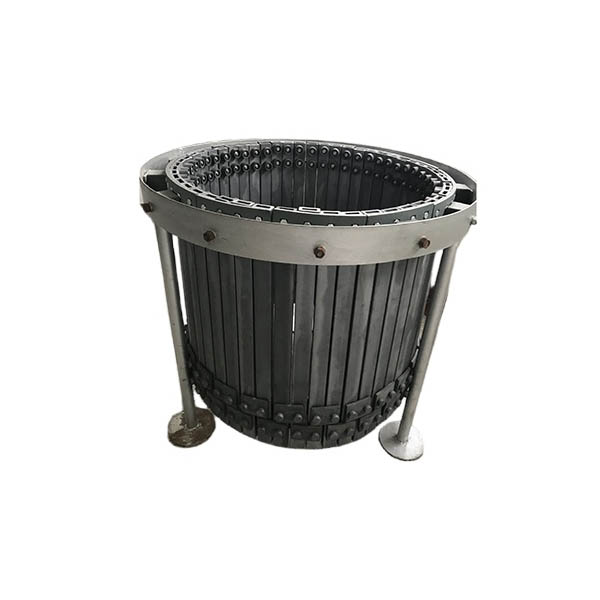

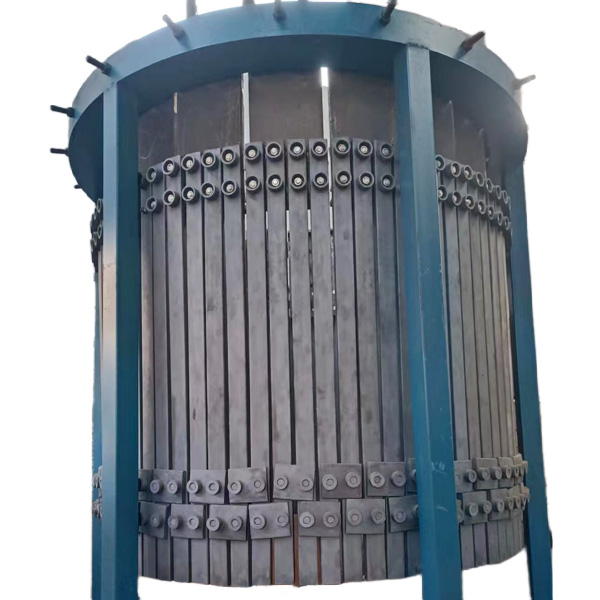

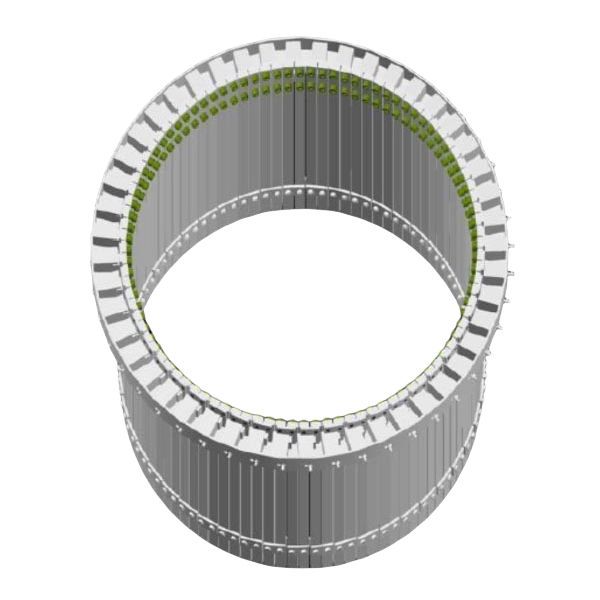

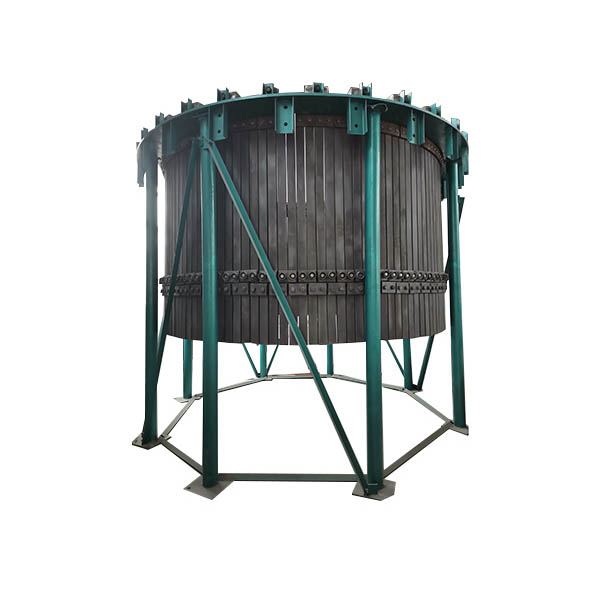

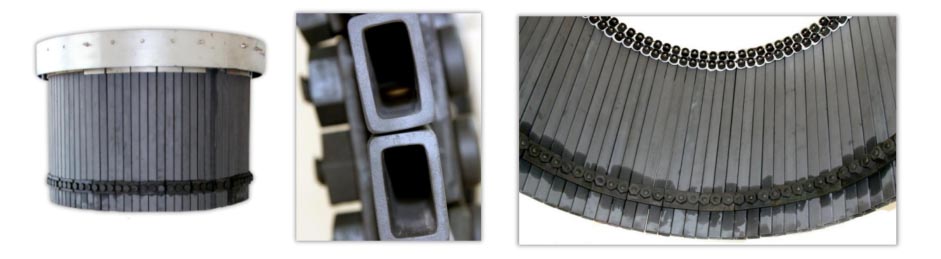

Preheater ceramic inner cylinder

In cement preheaters, ceramic inner tubes have become the preferred solution for key parts (such as cyclones, heat exchange pipes, decomposition furnaces, etc.) due to their excellent wear resistance, high temperature resistance, and chemical corrosion resistance.

When selecting, it is necessary to comprehensively consider the operating temperature, corrosiveness, and cost budget. Silicon carbide ceramics should be promoted in high-temperature and high-wear areas (such as C4-C5 and decomposition furnaces) first, and high-aluminum ceramics can be used in medium and low temperature sections. Silicon carbide ceramics have the best comprehensive performance but high cost, and high-aluminum ceramics have better cost performance.

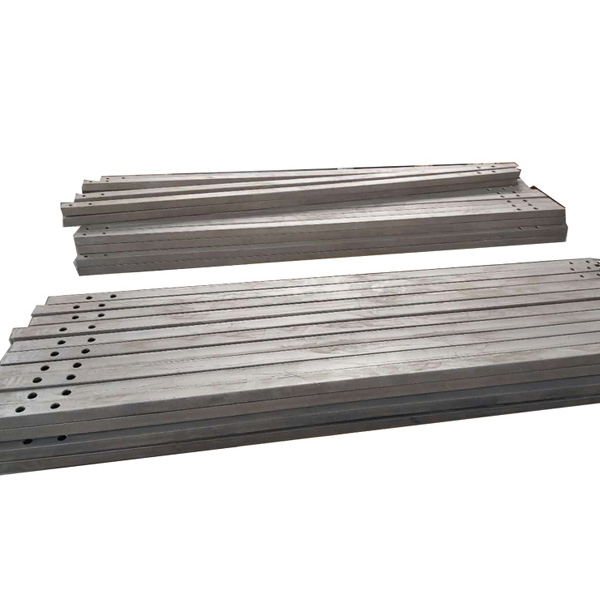

Heat-resistant steel inner cylinder

In cement preheaters, the heat-resistant steel inner cylinder is an important component between ordinary metals and ceramics. It is suitable for medium and high temperature sections (such as C3-C5 grade cyclones or heat exchange pipes) and must meet the requirements of high temperature resistance, oxidation resistance and certain wear resistance.

Heat-resistant steel inner cylinder still has irreplaceable advantages under 800-1100℃ working conditions, and is particularly suitable for production lines with frequent start-stop or large mechanical vibration. When the temperature exceeds 1150℃, it is recommended to transition to a ceramic-metal composite structure.



Customer case

---
